Details
Linear (1D) barcodes supported
Codabar,Code 11,Code 128,Code 25 (non-IR 2 of 5),Code 39,Code 93,GS1-128 (UCC/EAN-128),U.P.C.
2D (matrix & stacked) barcodes supported
Not supported
Optical sensor resolution
1500 pixels
Yaw reading angle
-45 - 45°
Tilt reading angle
-65 - 65°
Scanner type
1D
Pitch reading angle
-65 - 65°
Ports & interfaces
PC connection
RS-232
Data transfer rate
3 Mbit/s
Wireless range
100 m
Connectivity technology
Wired
Standard interfaces
USB,RS-232,Bluetooth
Technical details
Type

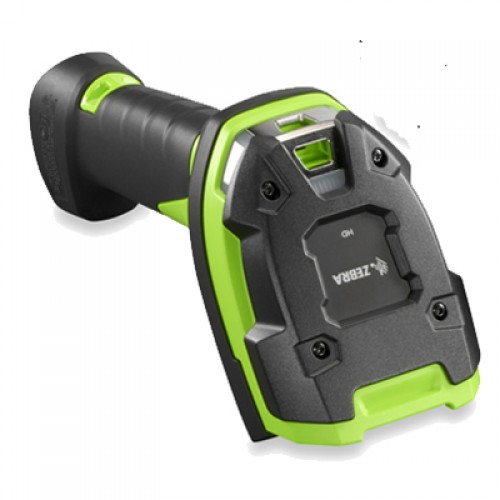

Handheld bar code reader
Protection features
Shock resistant
RoHS compliance
Yes
LED indicators
Yes
International Protection (IP) code
IP65
Product colour
Black,Green
Certification
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07, IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED), EN 55022: 2010/AC: 2011 (Class B), EN 55024: 2010, EN 61000-6-2: 2005/AC:2005, EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B), EN 61000-3-3: 2013, EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified), 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 5, Class B
PC connection
RS-232
Design
Type
Handheld bar code reader
Protection features
Shock resistant
RoHS compliance
Yes
LED indicators
Yes
International Protection (IP) code
IP65
Product colour
Black,Green
Certification
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + AC 2011 + A2: 2013, IEC 60950-1: 2005 + A1: 2009 + A2: 2013, UL 60950-1, second edition, CAN/CSA-C22.2 No. 60950-1-07, IEC 62471: 2006 (Ed.1.0); EN 62471: 2008 (LED), EN 55022: 2010/AC: 2011 (Class B), EN 55024: 2010, EN 61000-6-2: 2005/AC:2005, EN 61000-3-2: 2006 + A1: 2009 + A2: 2009 (Class B), EN 61000-3-3: 2013, EN 60601-1-2: 2007/AC: 2010, IEC 60601-1-2: 2007 (Modified), 47 CFR Part 15, Subpart B, Class B, ICES-003 Issue 5, Class B
Power
Power source type
Battery
Input voltage
4.5 - 5.5 V
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
3100 mAh
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
-30 - 50 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
132 mm
Depth
76 mm
Height
185 mm
Weight
287 g
Packaging data
Cables included
USB
Packaging content
Cables included
USB
